Digital Motor Speedmeter Engine Hour Meter Tachometer | LCD RPM Gauge for Gasoline 2/4 Stroke

Key Features

• Large LCD Screen — The large LCD screen makes readings easy to see at a glance.
• High RPM Range — Readings cover engines running up to 25,000+ RPM, including high-performance applications.
• Engine Hour Tracking — Total engine hours are tracked up to 10,000 hours before the counter resets to zero.
• Programmable Service Reminders — Service reminders can be programmed for oil changes and other maintenance tasks.
• Anti-Flicker Readings — Anti-flicker technology keeps RPM readings stable and accurate.

Product Specifications

• Compatible engines: 2-stroke and 4-stroke gasoline engines
• RPM range: up to 25,000+ RPM
• Hour meter range: up to 10,000 hours (resets to zero)
• Size: 72 x 46 x 20 mm (maximum)

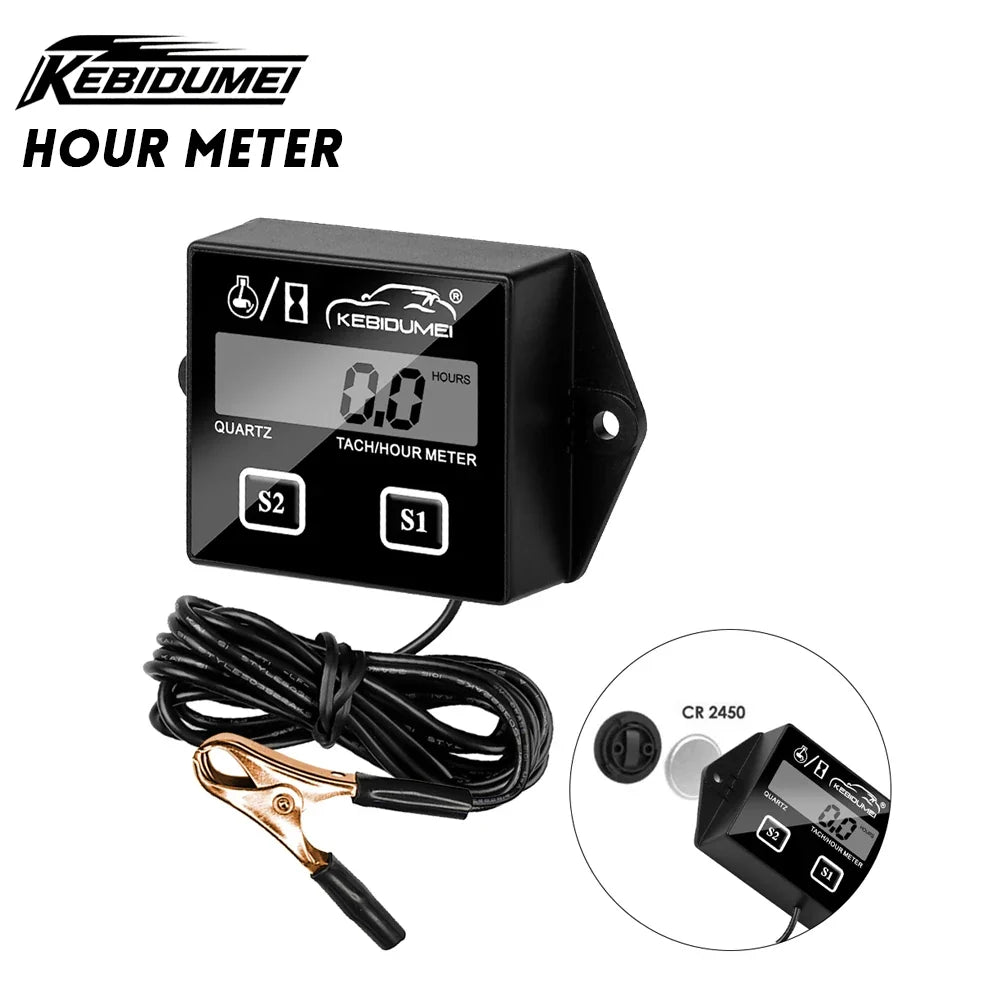

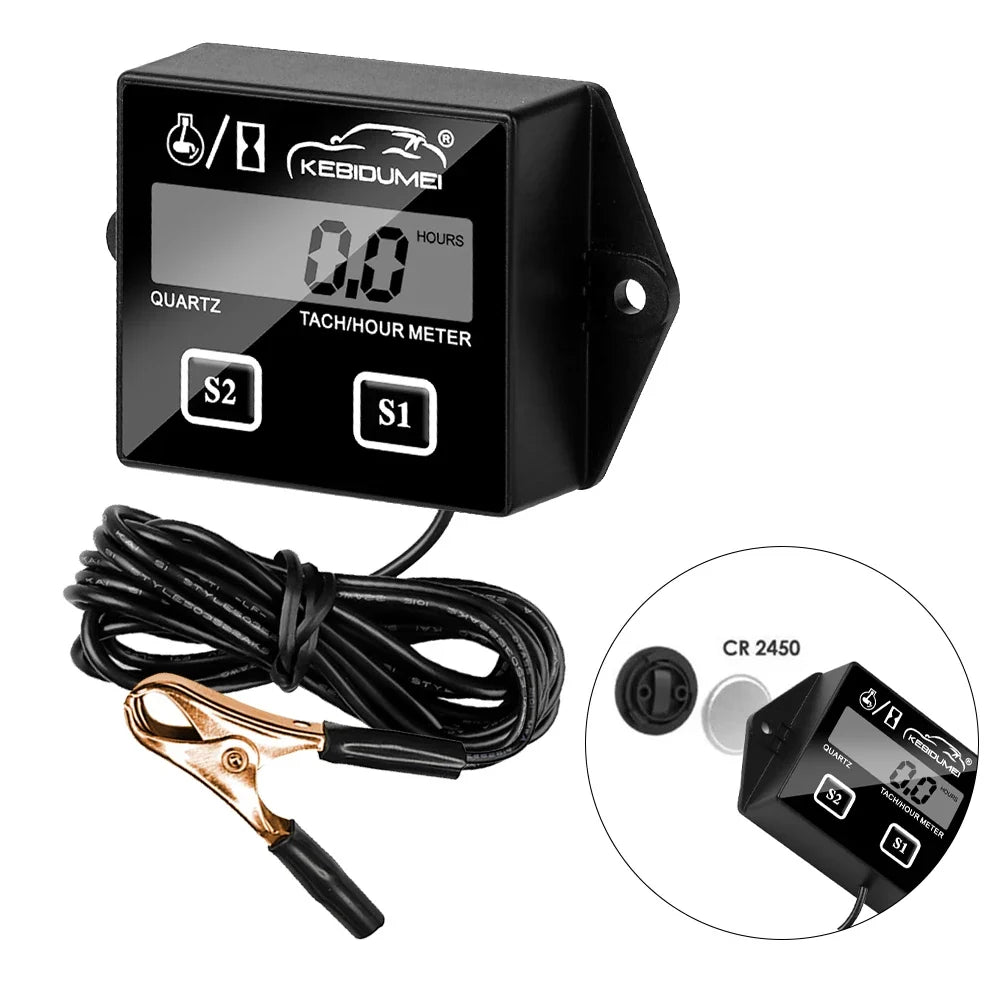

• Package contents: 1 x Digital Tachometer Hour Meter, 1 x Wiring cable, 1 x User manual

What It Is / How It Works

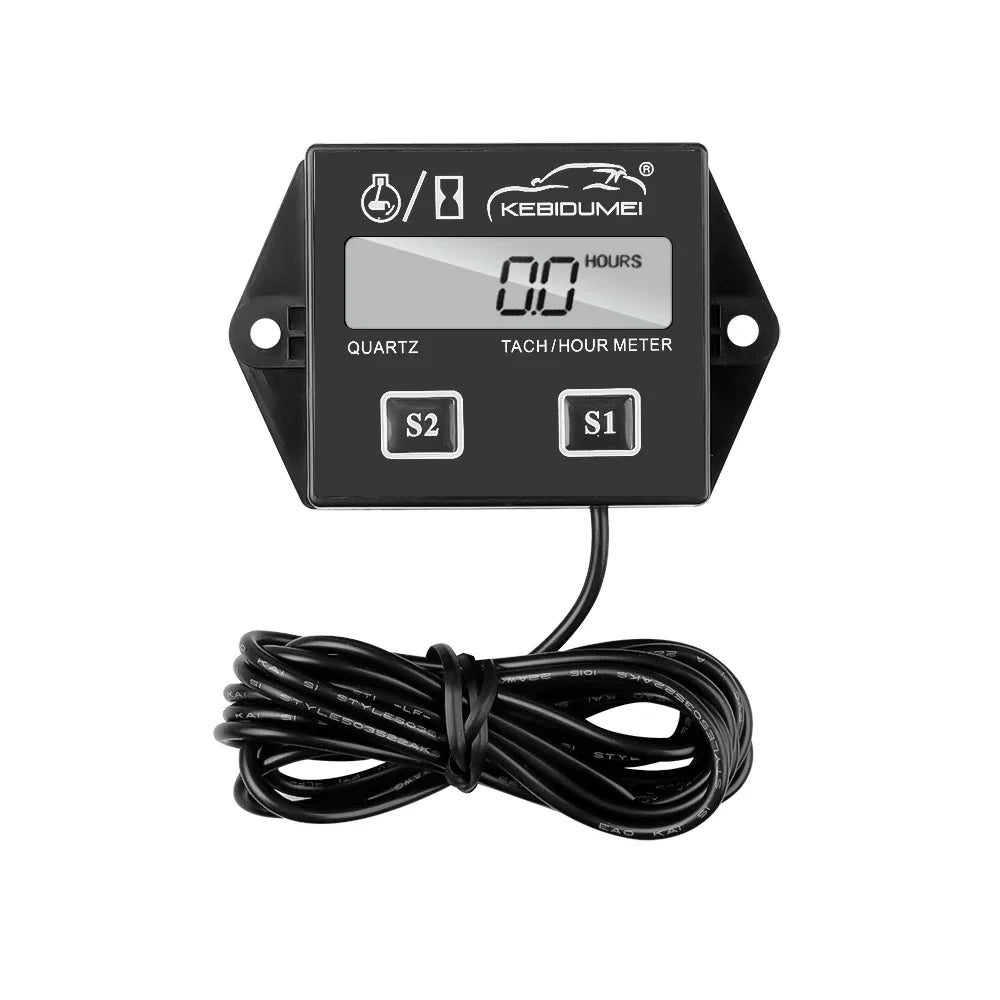

This digital tachometer and hour meter shows engine RPM and tracks total engine running time in one compact unit. It is designed for gasoline engines, including 2-stroke and 4-stroke models, and its LCD screen displays readings during operation.

Who It's For / Use Cases

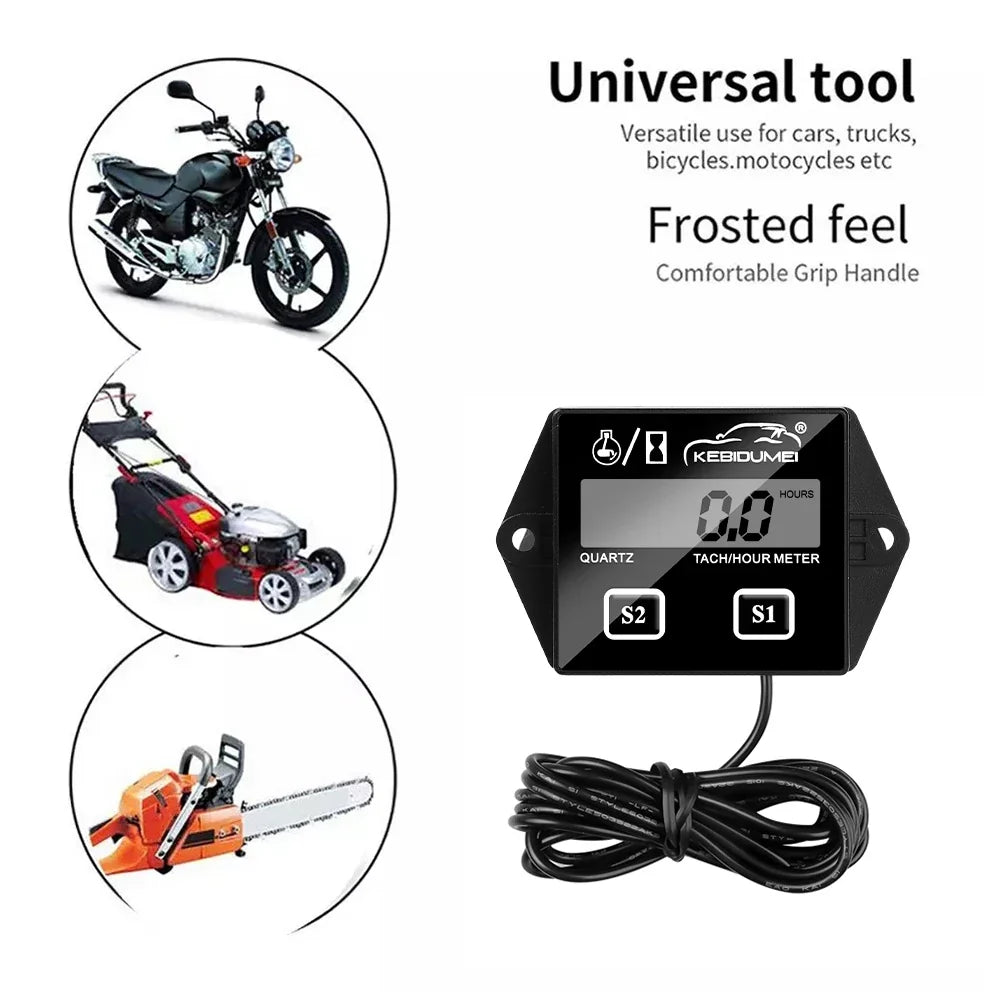

Tachometer and hour meter gauges suit owners who service gasoline engines on a regular schedule and want engine run time recorded rather than estimated. Riders of motorcycles, ATVs and off-road vehicles, owners of outboard boats, and people who maintain small engines are the typical buyers for this type of gauge.

How to Use / Care

1. Track total engine hours so oil change timing is based on recorded run time rather than guesswork.
2. After installing the digital hour meter, set a service reminder for every 50 hours.
3. The gauge is designed for general outdoor use but is not specified as fully waterproof, so protect it from direct heavy rain.

How to Choose

Start with your engine type. Next, consider the RPM range you need to read, since higher ranges matter for high-revving engines. If you plan to follow service intervals, look for an hour meter with programmable reminders and a running-time range that covers your expected use. Compare the overall size against the space you have available using the dimensions in Product Specifications.

Frequently Asked Questions

Can this tachometer work on a 4-stroke motorcycle engine?
Yes, it is suitable for both 2-stroke and 4-stroke gasoline engines, so a 4-stroke motorcycle engine is a supported use.

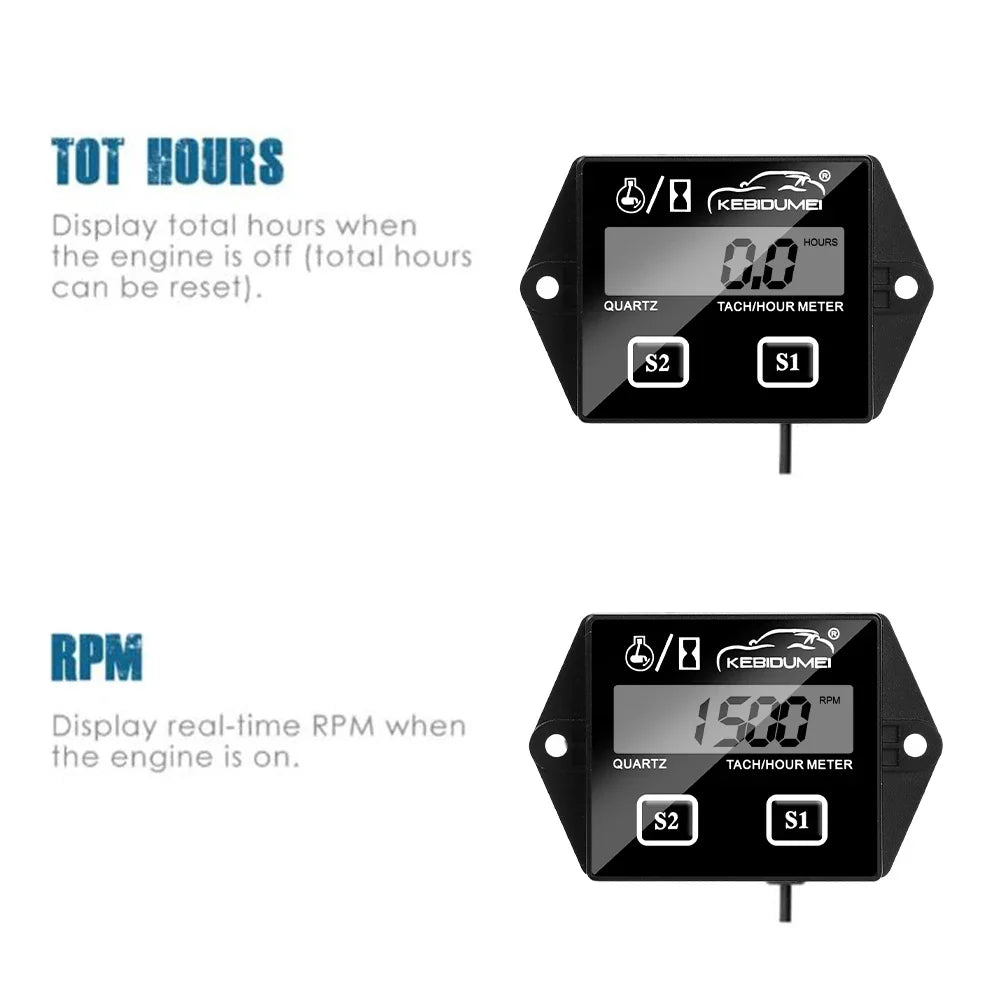

Does it display RPM while the engine is running?
Yes, it shows real-time RPM readings on the LCD screen while the engine runs.

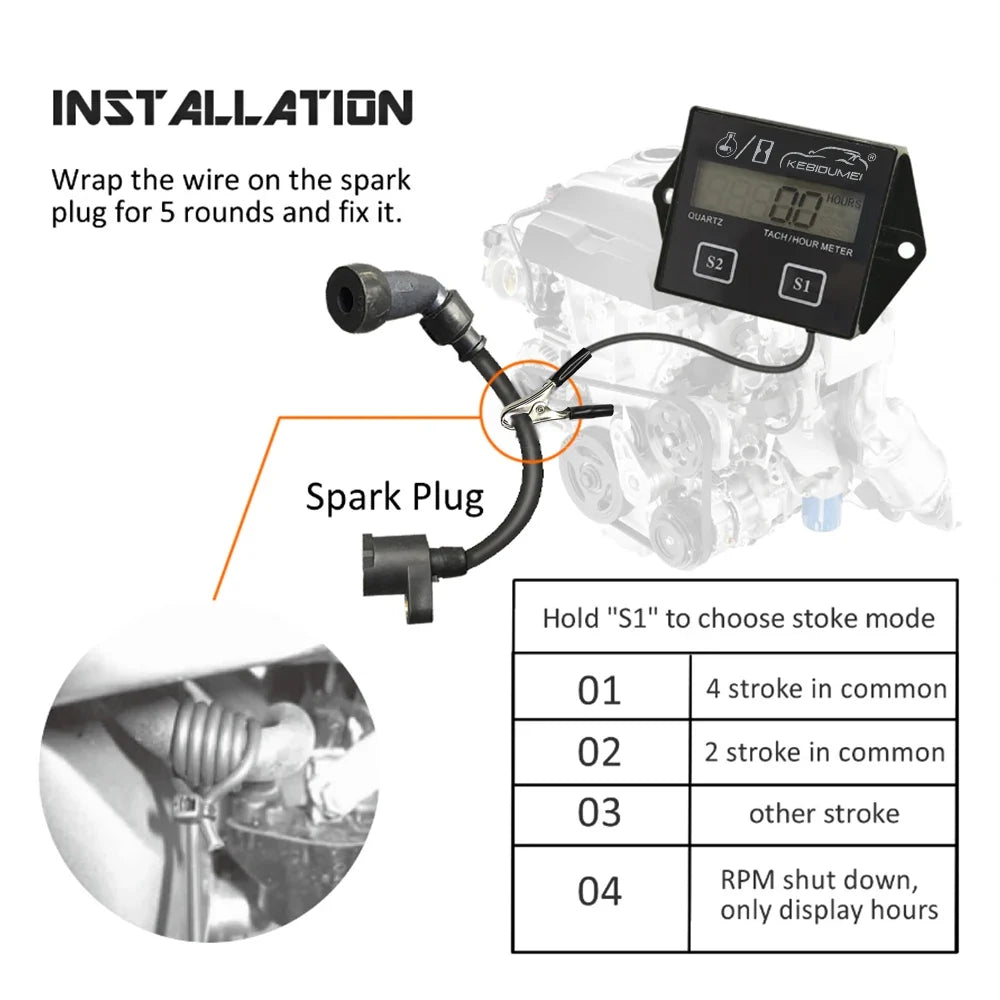

How do I set the service reminder?
Program the maintenance hours using the S1 and S2 buttons on the device.

What is the maximum RPM this gauge can read?
It can read up to 99,999 RPM, and it is designed for engines running above 25,000 RPM.
