Mechman Laser Cut Alternator Adapter Bracket 1994-2003 GM 2.2L SOHC
Mechman Laser Cut Alternator Adapter Bracket 1994-2003 GM 2.2L SOHC
Regular price
$39.95 USD
Regular price
Sale price
$39.95 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

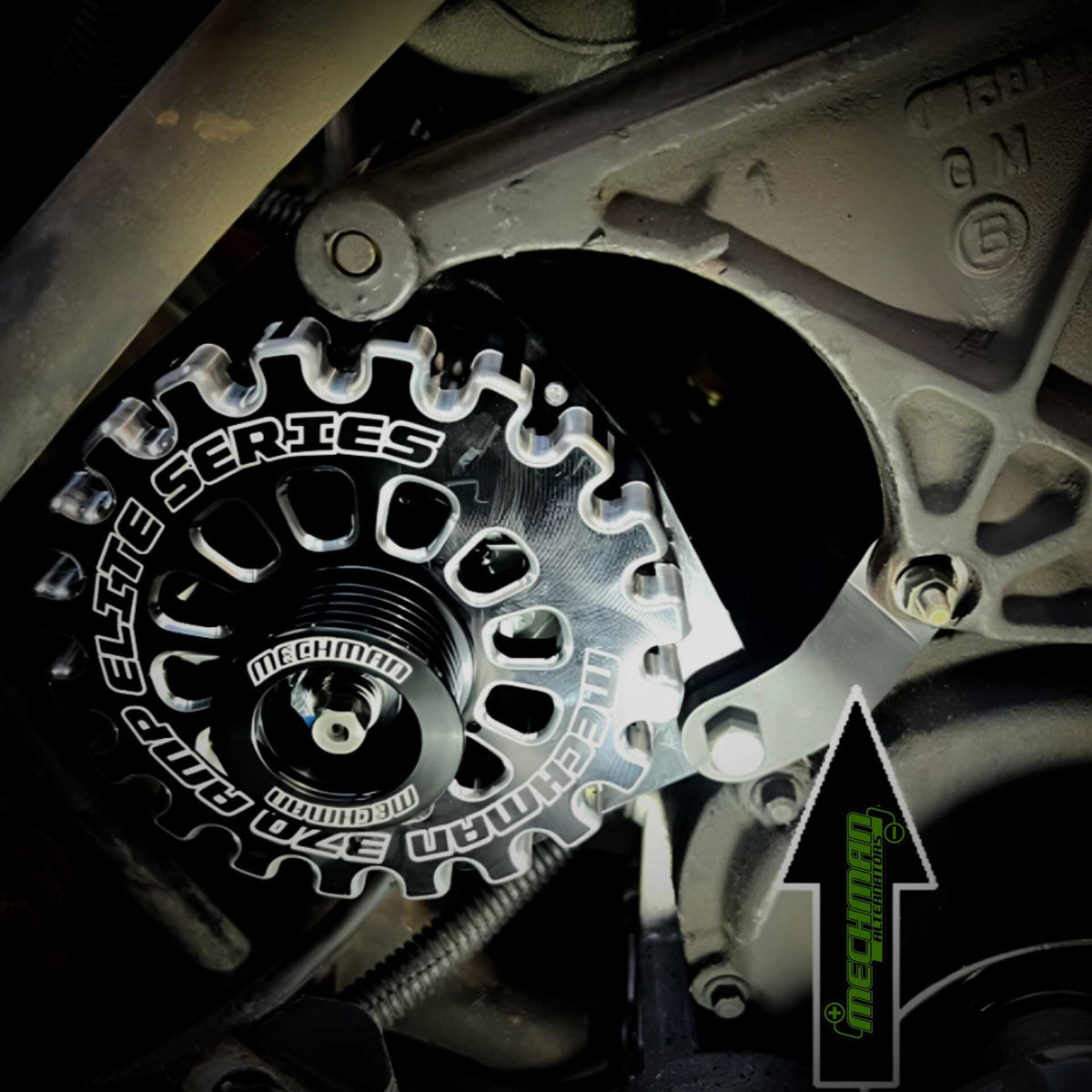

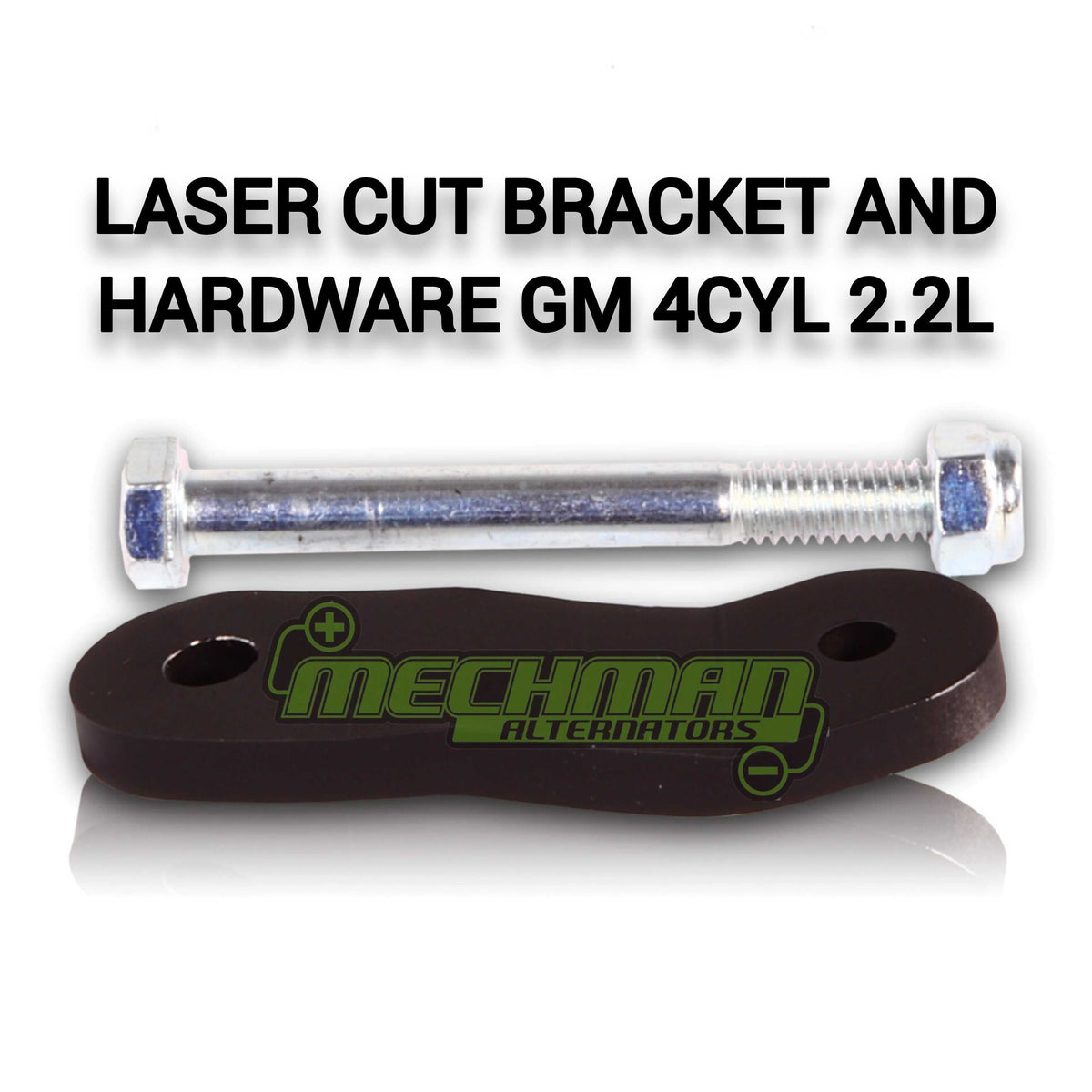

Do you have an S10, Cavalier or another popular model that used the GM 2.2L SOHC engine? If so, this small adapter bracket can turn a small case alternator application into a LARGE CASE alternator application! CNC bent laser cut steel bracket in an OEM matte black finish along with zinc coated hardware / nylock vibration free nut.
The main advantage of a large case alternator is the great idle output. A typical small case alternator in this application will only do around 120 to 140 amps. The large case will easily belt out 180-200 amps at idle and in extreme amperage needs can be more than 400 amps given the P# you choose for your goals. The fitment is tight, but this is the must have for any build well past 3000 watts of amplifier output.
NOTES: The installation of this bracket along with a large case alternator will require the use of a slightly longer serpentine belt (most use Dayco 5060775) and in some applications the removal of a brace or other OEM bracket that will physically interfere with the larger cased alternator. If your vehicle was NOT equipped with A/C, your belt length may vary.
The main advantage of a large case alternator is the great idle output. A typical small case alternator in this application will only do around 120 to 140 amps. The large case will easily belt out 180-200 amps at idle and in extreme amperage needs can be more than 400 amps given the P# you choose for your goals. The fitment is tight, but this is the must have for any build well past 3000 watts of amplifier output.
NOTES: The installation of this bracket along with a large case alternator will require the use of a slightly longer serpentine belt (most use Dayco 5060775) and in some applications the removal of a brace or other OEM bracket that will physically interfere with the larger cased alternator. If your vehicle was NOT equipped with A/C, your belt length may vary.
